First, The Basic Product Information
Chinese Name: 二乙基甲苯二胺,固化剂DETDA,扩链剂DETDA,E100,Cas Number: 68479-98-1
English Name: Diethyltoluene Diamine,Curing Agent DETDA,Chain Extender DETDA,E100

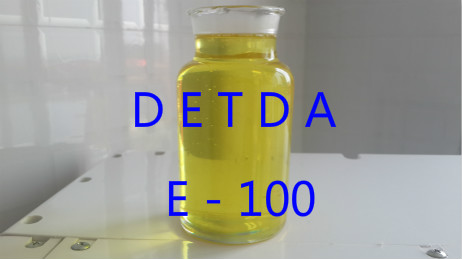

Appearance: Light Yellow To Amber Transparent Viscous Liquid, Slightly Soluble In Water, Soluble In Alcohols, Ethers, Ketones And Other Polar organic Solvents, And Polyether, Polyester Polyol Compatibility.
Molecular Weight: 178.28
Molecular Formula: C11H18N2
Relative Molecular Mass: 178.3
Boiling Point: 301.4°C At 760 MmHg
Steam Pressure: 0.00106mmHg At 25°C
Flash Point: 161.1°C Density: 1.013g/Cm3
Packing: Net Weight 200KG/Galvanized Iron Drum (16 Tons For A Small Cabinet), 1000KG/IB Drum (18 Tons For A Small Cabinet) or 23 Tons ISOTANK.
Similar Foreign Products: American AIbemarle (Ethacure 100), Lonza (Lonzacure DETDA 80), And Nitroil (PCAmine ADA L80)
The Following Are The Product Indicators Produced By Foreign Factories:
The Equivalent Weight Of The Diethyldiphenyltoluenediamine Curing Agent Chain Extender DETDA And Isocyanic Acid (Ie, The Ratio Of The Relative Molecular Weight To The Average Number Of Reactive Groups Per Molecule) Is Approximately 89.1 To 89.5, And Reacts With The Epoxy Resin. The Equivalent Is About 44.3.
1. The Typical Compositional Mass Fraction Of American A1bemarle DETDA Product (Grade Ethacure100) Is:
Moisture < 0.08%
Dialkyl Compounds Such As 0.5% To 3%
3,5-Diethyl-2,4 Diamine 75% To 81%
3,5-Diethyl-2,6-Diamine 18.0% To 20.0%
2. In Lonza'S DETDA Product (Brand Lonzacure DETDA 80), The Purity Of 3,5-Diethyldiamine Is ≥97.5%, And The Mass Fraction Of Each Component Is:
Moisture: < 0.10%
Diamine: ≤0.015%
Ethyldiamine: ≤1.0%
3,5-Diethyl-2,4-Diamine: 77.0% To 81.0%
3,5-Diethyl-2,6-Diamine: 18.0% To 22.0%
According To The Above Data Comparison, The Quality Of The Product Of Diethyldiethyltoluenediamine (DETDA) ,E100,Produced In Our Factory Is Equivalent To The Foreign Production Of DETDA.

Second, Product Physical Characteristics
Project Data
Flash Point °C 135
Freezing Point °C -8
Boiling Point °C (Lit.) 308
Density G/ML At 25 °C (Lit.) 1.02
Amine Value 615-635
Moisture ≤0.1%
Viscosity (20°C) 280
Viscosity (25°C) 155
Other Alkylamines 0.5-3.0%
Isocyanate Equivalent 89.5
Epoxy Resin Equivalent 44.3
3,5-Diethyltoluene-2,4-Diamine 75.0-81.0%
3,5-Diethyltoluene-2,6-Diamine 18.0-20.0%

Third, Product Performance Comparison
The Product Was Aged In An Oven At 120°C For 12 Hours And Left At Room Temperature For 7 Days. The Performance Of The Tested Product According To West German Standard DNI 53504 Was Comparable To That Of The Imported Product:
Project Self-Produced DETDA Imported DETDA,E100

Tensile Strength (MPa) 18.52 16.9
Elongation At Break (%) 300 280
Flexural Modulus (MPa) 208,5 210.8
Flexural Strength (MPa) 10.63 10.98

Fourth, Product Use
Diethyltoluene Diamine Curing Agent Chain Extender DETDA,E100 Is A Very Effective Polyurethane Elastomer Chain Extender, Especially Suitable For RIM (Reaction Injection Molding) And SPUA (Spray Polyurea Elastomer); Also Can Be Used As It Is An Aromatic Diamine Curing Agent For Polyurethane Elastomers And Epoxy Resins. It Is Used For Casting, Coating, RIM, And Adhesives. It Is Also A Chain Extender For Polyurethane And Polyurea Elastomers. Diethyltoluene Diamine Curing Agent Chain Extension The Agent DETDA Is A Hindered Aromatic Diamine. The Steric Hindrance Of Ethyl And Methyl Groups Makes Its Activity Much Lower Than That Of Toluenediamine (TDA). Its Reaction With Polyurethane Prepolymers Is Several Times Faster Than DMTDA. , 30 Times Faster Than MOCA. Mainly Used In RIM Polyurethane System And Spray Polyurethane (Urea) Elastomer Coating System, With The Advantages Of Fast Reaction Speed, Short Demolding Time, High Initial Strength, Product Hydrolysis Resistance, Heat Resistance, Etc. Products Can Also Be Used As Antioxidants For Elastomers, Lubricants And Industrial Greases, As Well As Chemical Synthesis Intermediates.
